Juki TL-2300 Sumato Semi Professional

£1,795.00

  • In Stock for Free Next Working Day Delivery
  • In Stock for Collection



Why buy from us?



1 in stock (can be backordered)

Description

Juki TL-2300 Sumato Semi Professional



Adoption of Industrial Needles

This sewing machine uses durable industrial needles. The wide range of needles sizes accepted (Nm.65 to Nm. 110) ensures the versatile sewing of heavy to light weight materials.



Float Function (micro-lifter)

Now equipped with the same mechanism as JUKI industrial sewing machines for preventing uneven sewing on quilts and velvet, as well as stretched stitches on knit fabrics. The presser foot floats 0 to 2 mm above the material, making it useful for sewing over thick seams.

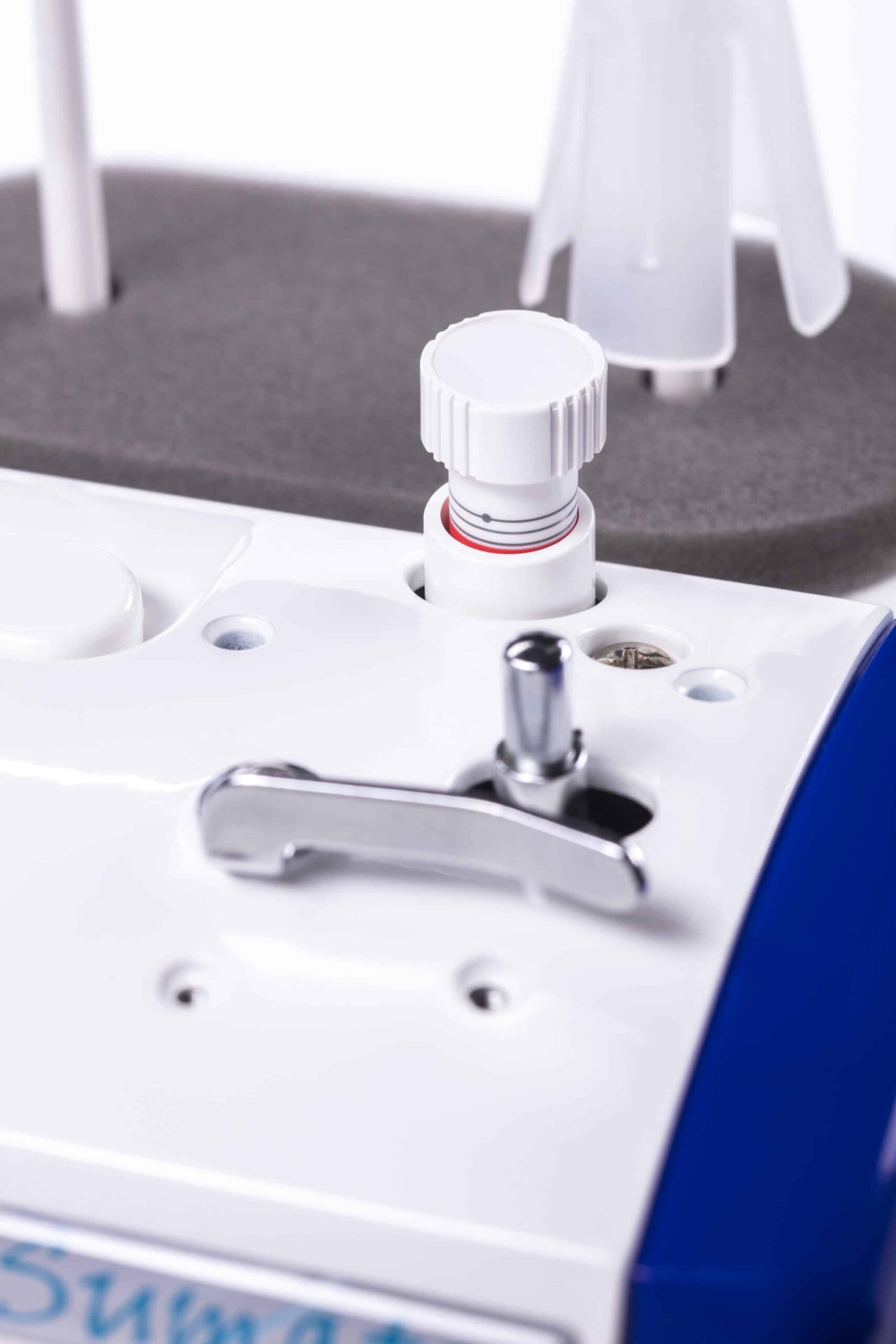

Presser Foot Pressure Adjustment

Turn the regulator on top of the machine to Slow-Motion Switch adjust the presser foot pressure according to the thickness of the fabric.



Sub Tension Unit

No matter the thread type, sub-tension ensures stitches are sewn with a balanced thread tension. Achieve Perfectly balanced threads with every stitch. Stronger threads can make for unruly stitches. Sub-tension creates steady stitches by putting an end to stitches that come up.



Needle Up/Down and Slow-Motion Switch

Each press of the needle up/down switch moves the needle halfway up or down. Hold the switch down to sew a slow single stitch ― useful when sewing corners and at the end of stitching.



Automatic Thread Trimmer

Perfectly trim the needle and bobbin threads with the simple push of a button. Industrial sewing machine technology provides exceptional durability, noise control and cutting. ※Thicker threads (thread counts of Tex:80 or higher) and special-purpose threads should be trimmed with scissors.



Attachment Mounting Plate

A separate attachment mounting plate for installing fabric guides and other attachments. This extends the life of the sewing machine, as it can now be replaced when the mounting holes become damaged.



Foot Controller (with independent thread trimming foot switch)

The foot control allows you to stop the needle exactly where you want. It also responds flawlessly when you want to sew just one more stitch. The independent thread-trimming foot switch trims the thread smoothly with no missteps. The foot switch can be attached to either the left or right side of the pedal.



Vertical Full Rotary Hook

A vertical full rotary hook as in JUKI industrial sewing machines produces beautifully balanced and even stitching. The quiet smooth operation even at speeds up to 1,500 stitches per minute.



Sturdy Die-Cast Aluminium Frame

The machine body is made of a die-cast aluminum frame, minimizing vibration and noise. Professional performance is maintained by employing the same technology found in JUKI industrial sewing machines.






For heavy-weight materials

This sewing machine is provided with a full range of functions for sewing heavy-weight materials such as leather, synthetic leather, denim, and canvas. With its stable feeding and consistent thread tension, the machine produces beautifully finished seams even when sewing with thick threads (thread counts of up to Tex:80).



Thread Guide for Thick fabric

When sewing heavy-weight materials, the machine produces well-tensed seams without requiring significantly increased needle thread tension using thick threads for this thread guide.



Throat Plate for Thick Fabric

This throat plate has a larger needle hole and deeper thread relief grooves. These features help prevent stitching failures and produce well-tensed seams when using a heavy-weight material and thick thread in combination.



Smooth Foot for Thick Fabric

Deeper thread relief grooves on the reverse side of the smooth foot help produce well-tensed seams even when using thick thread. The sewing material slides steadily under the smooth foot without sticking, ensuring a steady sewing flow.

The sewing machine also promises high-quality finish when sewing light- to medium-weight materials. Configured to sew with needles up to Nm.65, the machine sews beautifully with light-weight materials such as organdie, georgette, lawn cloth and cupra.






For Light To Medium-Weight Materials

The sewing machine also promises high-quality finish when sewing light to medium-weight materials. Configured to sew with needles up to Nm.65, the machine sews beautifully with light-weight materials such as organdie, georgette, lawn cloth and cupra.



Normal Threading

Use the conventional threading method when sewing light- to medium-weight materials.



Normal Throat Plate

This throat plate accommodates wide-ranging materials and never allows materials to slip through the needle hole. A throat plate with a smaller needle hole can also be used for light-weight materials (optional.



Standard Presser Foot

This standard-type presser foot promises ease of use when sewing straight, curved, and edged sections of light- to medium-weight materials. A presser foot effective for light-weight materials is separately available when flopping of the material is a concern.






Other Machine Features
  • Sewing Speed Control
  • Easy Bobbin Replacement
  • Bobbin Case – Adjustable bobbin thread tension
  • Knee Lifter Lever – The presser foot can be raised as high as 12 mm, making it easy to insert thick fabrics and large projects.
  • Machine Threading – The slit in the thread take-up makes threading extremely easy.
  • Bobbin Winding (Auto Stop) – The bobbin stops spinning automatically when it is full.
  • Thread Tension Scale – Use the thread tension scale to easily adjust the tension according to the thread and material to be used.
  • Drop Feed – Perform free-motion quilting and free-hand embroidery with ease.
  • Portable Power – Sew anytime, anywhere with this portable but powerful machine equipped with a carrying handle.






Juki TL-2300 Sumato Brochure More from Juki

Additional information

Specifications

Sewing Speed: Min.55 – Max.1,500SPM
Stitch Length: Max. 6mm
Lift of the Presser Foot: By lever Max. 9mm, by knee lifter Max. 12mm
Needle: 134, DP X5(Nm65-110 / No.9-18)
Auxiliary Table(dimensions): 590(W)x 335(D)mm
LED Light
Horizontal-axis Full-rotary Hook

Presser Feet

Standard presser foot
Hemming foot
Zipper attaching foot
Smooth foot (for thick fabric)

Accessories

Throat plate for thick fabric
Sewing machine cover
Auxiliary table
Foot control
Power cable
Exclusive Screwdriver
Screwdriver (small)
Needles (134)
Cleaning brush
4 Bobbins
Oiler
Spool cap
Knee lifter

Weight

11.6kg

Dimensions

452 (W) x 350 (H) x 219 (D) mm

Warranty

2 Years Warranty
