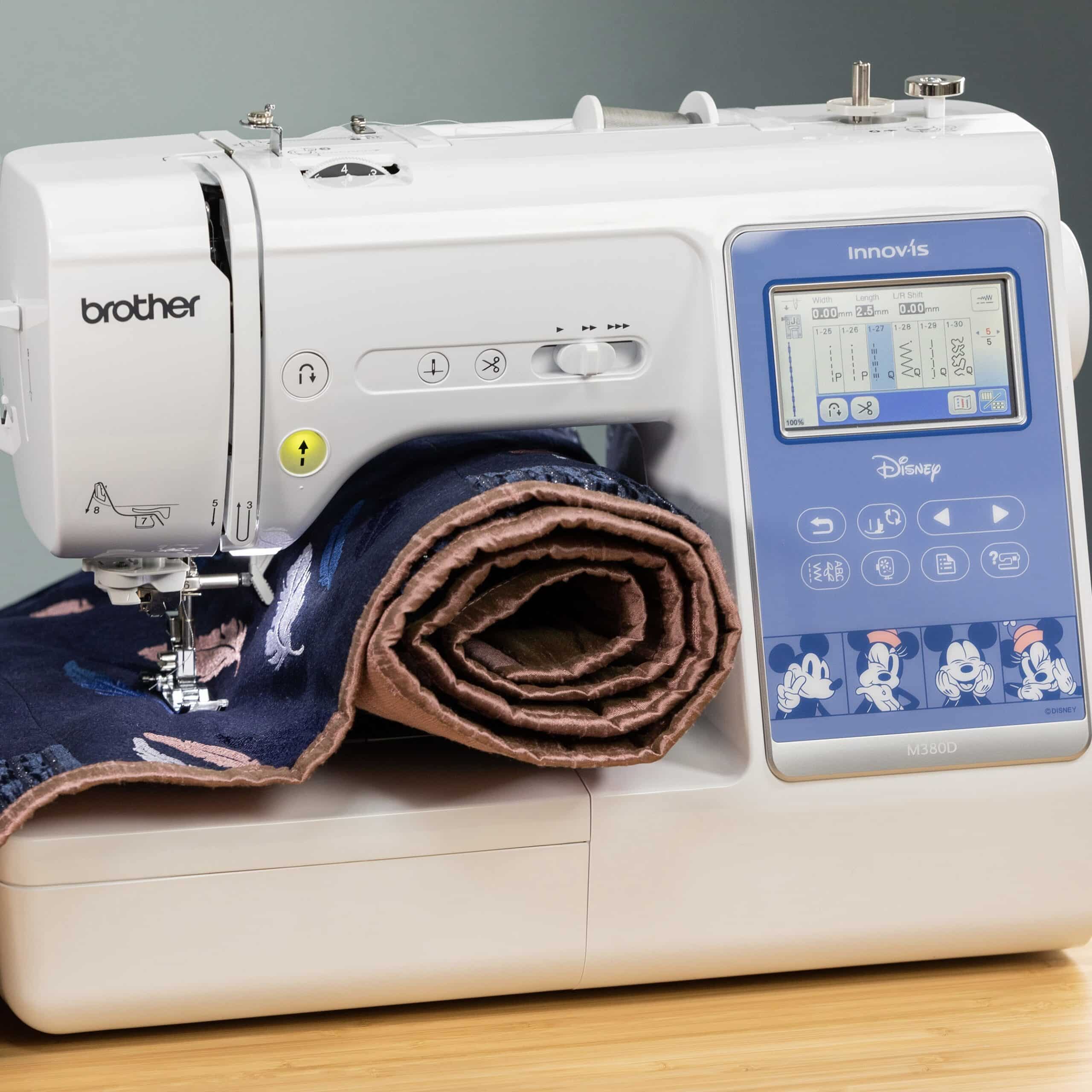

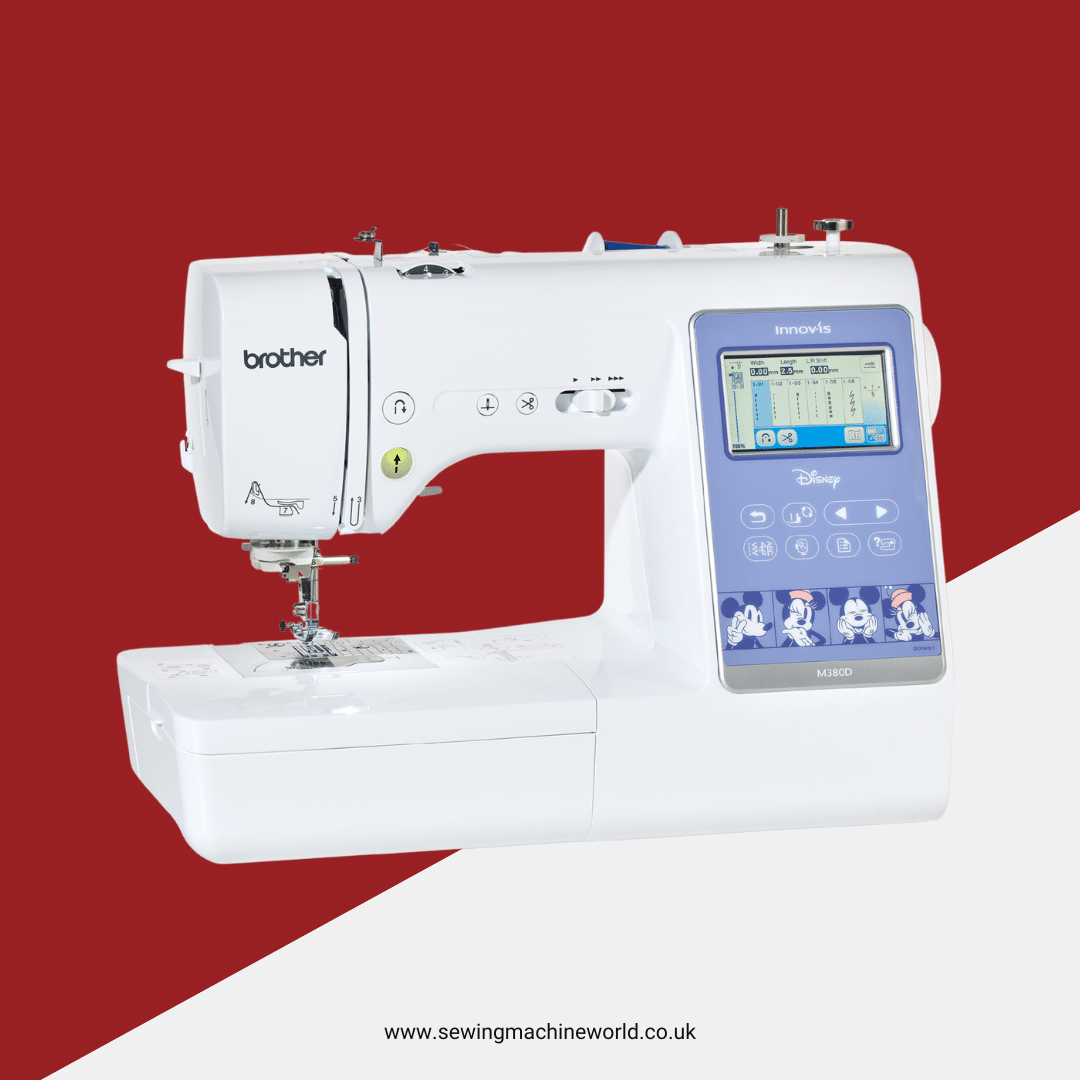

Brother Innov-is M380D Sewing and Embroidery Machine


  • In Stock for Free Delivery 2-3 Working Days
  • Delivered Direct from Brother UK
  • On Display In Our Showroom


Why buy from us?



Stitch excitement into everything you make on the Brother Innov-is M380D sewing, quilting and embroidery machine. There are 200 built-in designs, of which 65 are Disney. Plus, with 181 built-in stitches, including 10 buttonholes, your projects will always be truly original.

Add a personal touch with 11 built-in embroidery and 4 lettering fonts. From monograms to feel good slogans, it’s time to express yourself!

Take that individuality even further with My Custom StitchTM. Use the colour LCD touchscreen to design your own stitches or edit the built-in designs. Save them to your machine for future use.

With on-screen editing you can take your creativity to infinity and beyond – flip, rotate, change the colour and repeat designs.

With a central panel including needle up/down button, slide speed controller, thread cutter and start/stop button, precision control is at your fingertips.

Reach for the sky and take your crafting even further. With wireless LAN connectivity you can download additional designs, or connect to Artspira, our new creative hub.





Key Features
  • 200 built-in embroidery designs, including 65 Disney designs
  • 11 built-in fonts
  • 100 x 100 mm embroidery area
  • Colour touchscreen
  • Advanced needle threader
  • Wireless LAN connected
  • Artspira creative app
  • 181 sewing stitches, including 10 buttonholes
  • 4 lettering fonts
  • Design your own stitches with My Custom StitchTM
  • Super sewing features
  • 160 mm (6.2”) workspace
  • Hard case



Advanced needle threading system

No more stress when threading. Follow the thread guide, and use the needle threader lever with one finger.


3.7’’ colour LCD touch screen

Manage all the functions with a simple touch of the easy-to-read, 3.7” LCD high resolution display (432 x 240 pixels). Includes icons and 15 languages.


Super bright LED Light

A bright, but gentle-on-the-eye light, makes it easier to work on dark fabrics.


Convenient controls

For ease of use, all operating buttons are on one convenient panel – thread cutter, needle position up/down, Start/Stop function.


Bobbin winding system

Quick and easy way to wind lower thread! Just load the bobbin on the winder and the thread guide will show you which way to go.


Quick-set bobbin

Just drop in a full bobbin and you’re ready to go.


Thread sensor

The Innov-is M380D is equipped with upper and lower thread sensors that warn when thread is broken or has run out.


200 Built-in embroidery designs, including 65 Disney designs

Stitch excitement into every piece of embroidery on the Innov-is M380D with 200 built-in designs, of which 65 are Disney.


11 Embroidery fonts

Add a personal touch with 11 built-in embroidery fonts. From monograms to feel good slogans, it’s time to express yourself!

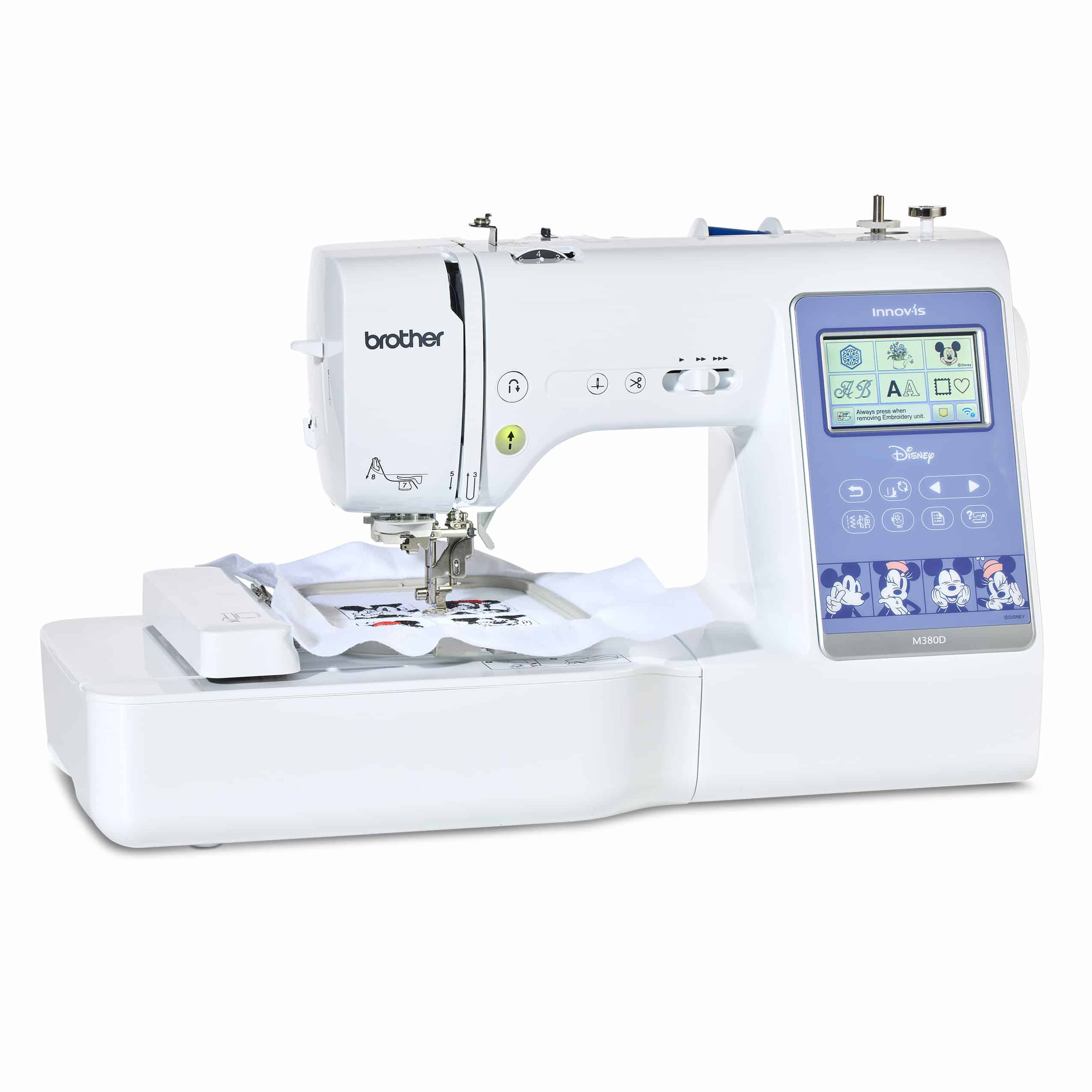

100 x 100 mm Embroidery area

Just set the embroidery unit and frame, select the pattern and you’re ready to embroider. Additional frames are also available separately.


Wireless LAN connectivity

Reach for the sky and take your crafting even further. With wireless connectivity you can transfer additional designs using Design Database Transfer (for Windows devices only), or connect to Artspira, our new creative hub. Here you will find free designs and projects, or even draw your own custom designs.


USB port

Just insert a USB flash drive and load your embroidery design directly to the machine.


Combine embroidery patterns

Several designs can be showed at same time by pressing “Add” button.


Built-in embroidery frame patterns

14 stitch types can be combined with 10 different frame shapes such as a circle or a square.


Editing on the screen

Powerful editing features include the layout, pattern rotation in 1°, 10° & 90°, mirror imaging and scaling between 90 – 120%.


Compatible with other manufacturers’ thread

In addition to the Brother thread chart, the Innov-is M380D recognizes threads from three other manufacturers.


7 Point feed

Provides a smooth feeding action and superior stitch quality on any weight of fabric.


Free arm sewing

Remove the accessories storage compartment for free arm sewing. Sew small continuous items like armholes, cuffs etc with ease.


Convenient controls

For ease of use, all operating buttons are on one convenient panel – thread cutter, needle position up/down, Start/Stop function.


4 lettering styles (sewing)

Add different lettering styles for labels and monograming projects.


Automatic thread cutter

Cuts upper and lower thread automatically with the touch of a button.


181 Sewing stitches

Choose from 181 stitches built into the machine, giving you unlimited creativity. Also includes 10 one-step buttonhole styles.


My Custom StitchTM

Design your own stitch patterns or edit and change the built-in template designs and save for future use.


Drop feed lever

Easy-to-switch lever to drop feed dogs for free motion embroidery and quilting.


Slide speed

Adjusts speed from slow to fast. This can also be set to alter stitch width whilst sewing for zig-zag stitches.


Needle stop position

Select whether the needle should be up or down when the machine stops. Useful for turning fabric, sewing corners or joining quilt pieces.


Hard case

Carefully protects the machine when not in use.


Automatic reverse/ reinforcement stitch

The machine automatically sews reverse/reinforcement stitches at the beginning and end of sewing.


Mirror function

For more stitch variety use this function to create a mirror image of your stitch pattern.


Repeated single sewing

Choose whether the stitch pattern will be sewn once or repeatedly.


Combining stitches

Create your own stitch patterns by combining different stitches.


Snap-on presser feet

Quickly and easily change presser feet.



Brother Innov-is M380D Leaflet  Brother Support Centre App Optional Accessories Brother Artspira App

Additional information

Machine Information

Machine Size – Compact and Lightweight
Product Type – Embroidery, Sewing
Skill Level – Beginner

General Features

Accessory Compartment – Yes
Bobbin Type – Horizontal
Case – Hard Case
Machine Type – Electronic
Insertion of Bobbin – Quick Set Bobbin
Lighting – 1 LED
Number Of Needles – 1


Design Database Transfer app for Windows PC – Yes
USB Port – USB Port
Wi-LAN Function – Yes


Type of Screen – LCD-Touchscreen Colour
Display Size – 3,7"

Embroidery Features

Embroidery Area in mm – 100 x 100
Font Editing Functions/Multiple Lines and Alignment (L-C-R) – C
Font Size Selection (L-M-S) – Yes
Max Embroidery Speed (Stitches per Minute) – 400
Number of Spool Stands – 1
Pattern – Size, Change Rotation & Mirror – Yes
Realistic Preview of Patterns – Yes
Built-in Embroidery Frame Patterns – 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) – 11
Built-In Patterns – 200
Frames Included – 100 x 100 mm (4 x 4”)


Voltage – 220 – 240V

Sewing Features

Bobbin Work – Optional
Built-In Lettering Styles – 4
Buttonholes – 10
Circular Sewing – Optional
Combine stitches – Yes
Drop feed setting – Manual
Electronic slide speed control – yes
Extension Wide Table – Optional
Free arm sewing – Yes
Free Motion Embroidery Kit – Optional
Longer Feed Dog – Yes
Longer J-Foot – Yes
Max. Sewing Speed (Stitches per minute) – 850
Mirror imaging – Yes
My Custom Stitch – Yes
Needle Positions – 15
Needle Stop Position Control Up/Down – Yes
Repeated single sewing – Yes
Snap on Presser Feet System – Yes
Speed control customised for zigzag width – Yes
Workspace (cm) – 15.7
Number of sewing stitches *incl. buttonholes – 181
Stitch Length (mm) – 5
Stitch Width (mm) – 7


Brother 3 year Warranty *Commercial use only 1 year warranty


Automatic Thread Cutter – Yes
Bobbin Winder – Yes
Lower Thread Sensor – Yes
Needle Threading System – Advanced
Upper Thread Sensor – Yes
Adjustable Thread Tension – Manual

Weight and Measurements

Machine Dimension (mm) – 419 x 194 x 307
Weight (kg) – 6.8

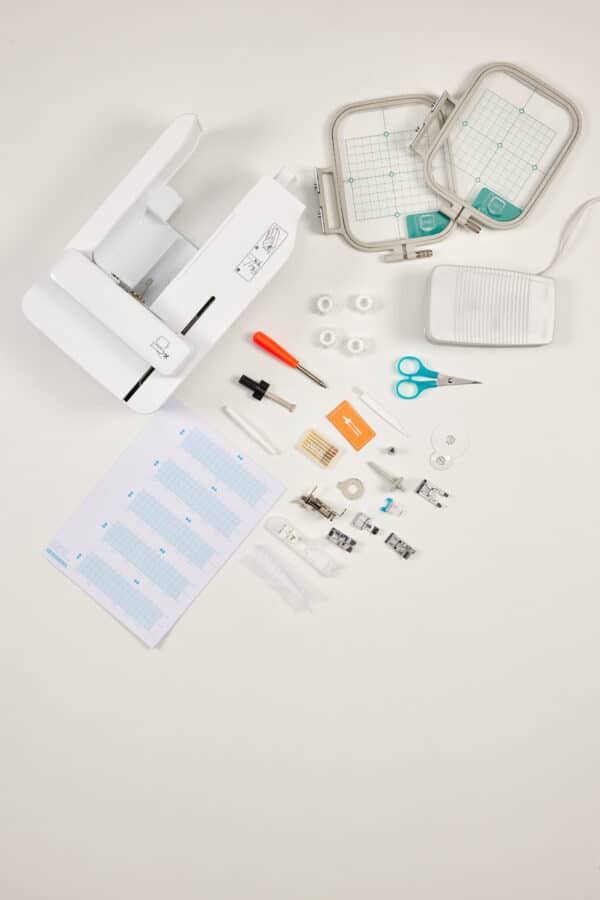

What's in the box

Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Blind stitch foot “R”
Button fitting foot “M”
Buttonhole foot “A”
Embroidery foot “Q”
Needle set
Twin needle
Bobbin (on machine)
Pre-wound bobbin x 4
Bobbin clip x 4
Seam ripper
Cleaning brush
Eyelet punch
Disc-shaped screwdriver
Extra spool pin
Spool cap (large)
Spool cap (medium) (on machine)
Spool cap (small)
Thread spool insert (mini king thread spool)
Spool net
Bobbin case (on machine)
Foot controller
Embroidery frame set (medium)10 cm (H) × 10 cm (W) (4 inches (H) × 4 inches (W))
Accessory bag
Hard case
Grid sheet set
Operation Manual
Quick Reference Guide
Embroidery Design Guide
