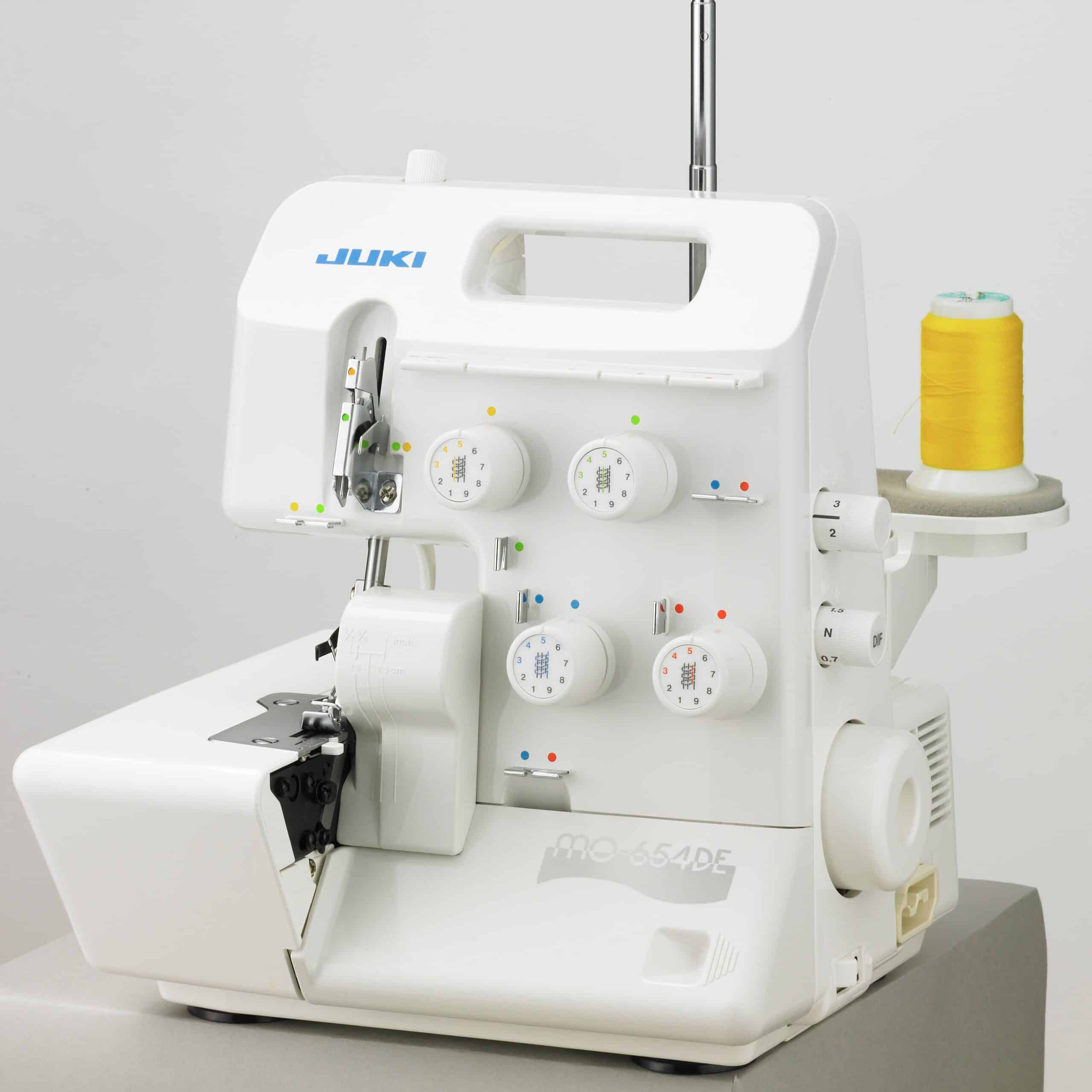

Juki MO-654DE

£665.00

  • In Stock for Free Next Working Day Delivery
  • On Display In Our Showroom
  • In Stock for Collection



Why buy from us?



2 in stock

Presser Feet

Description

Expand your sewing capabilities with the Juki MO-654DE 4-thread machine offering a variety of stitch selections as well as differential feed and automatic rolled hemming. Create the latest fashion types and home decor items sewing light to heavy weight fabrics.








Adjustable Stitch Length

For the MO-654DE a convenient turn dial is located on the exterior right hand side.



Differential Feed

Is easily controlled and adjusted by a dial located on the exterior right hand side.



Automatic Rolled Hemming

Can now be created quickly and easily with built-in fingertip control. There is no need to change the foot or plate.



Lower Looper Threader

Allows for easy threading in seconds – simply slide your thread into a slot and snap the looper back in place.



Lower Knife Adjustment Knob

Adjusts the lower knife quickly to change the width of fabric in the seam allowance, for perfect seams and rolled edges.



Heavy Duty Knife System

The knife system on the Juki MO-654DE operates with a dedicated drive to assure consistent and easy cutting for both light to heavy weight fabrics.



Upper Knife Releasing System

Removes the upper knife so that threading is made safer and easier.



Multi-Purpose Foot

Comes equipped with a slotted tape guide which can be used to sew woven tape, elastic, sequins and ribbon.



Colour-Coded Threading Guides

Throughout the machine making threading easy and efficient.



Bright Light

Optimum lighting to the fabric and needle area.






Video Tutorials
  1. Changing the Needle and Thread, Stitch Variations
  2. Preparing, Threading, and Adjustments






Juki MO-654DE Leaflet Juki MO-654DE Instruction Manual



Additional information

Stitches

4-Thread Overlock
3-Thread Overlock
3-Thread Narrow Overlock – 4mm
Frill 3-Thread Rolled Hem w/ Differential Feed
3-Thread Rolled Hem
3-Thread Overlock
2-Thread Rolled Hem
2-Thread Overcast

Specifications

Maximum 1,500 spm
2/3/4 Threads
Household Machine Needles Size 11 or 14
Overlocking Width: Left Needle – 6mm / Right Needle – 4mm / Rolled Hem – 2mm
Stitch Length: 1 – 4mm (Standard – 2.5mm) / Rolled Hem – 1.0 -1.5mm
Differential Feed: 0.7 – 2.0 Ratio
Tension: Industrial Type Dial / 1 Rotation
Built-in Rolled Hemming: Right (Narrow) or left (Wide) Needle / 2 or 3 Thread
Flatlock: Right or Left Needle / 2 or 3 Thread
Universal Presser Foot: Tape, Ribbon, Narrow Elastic Application
Presser Foot Lift: 5mm

Weight

7.0kg

Dimensions

270 mm (w) x 345 mm (d) x 295 mm (h)

Warranty

2 Years Warranty

Accessories

Foot controller
Lower knife
2/3 thread converter
Nets
Spool caps
Tweezers
Cleaning brush
Needle threader
Needle in the needle box
Small screwdriver
Large screwdriver
Oiler
Accessory bag
Dust cover
Looper threader
