Juki HZL-NX7 Sewing Machine


  • In Stock for Free Delivery 2-3 Working Days
  • Delivered Direct from Juki UK

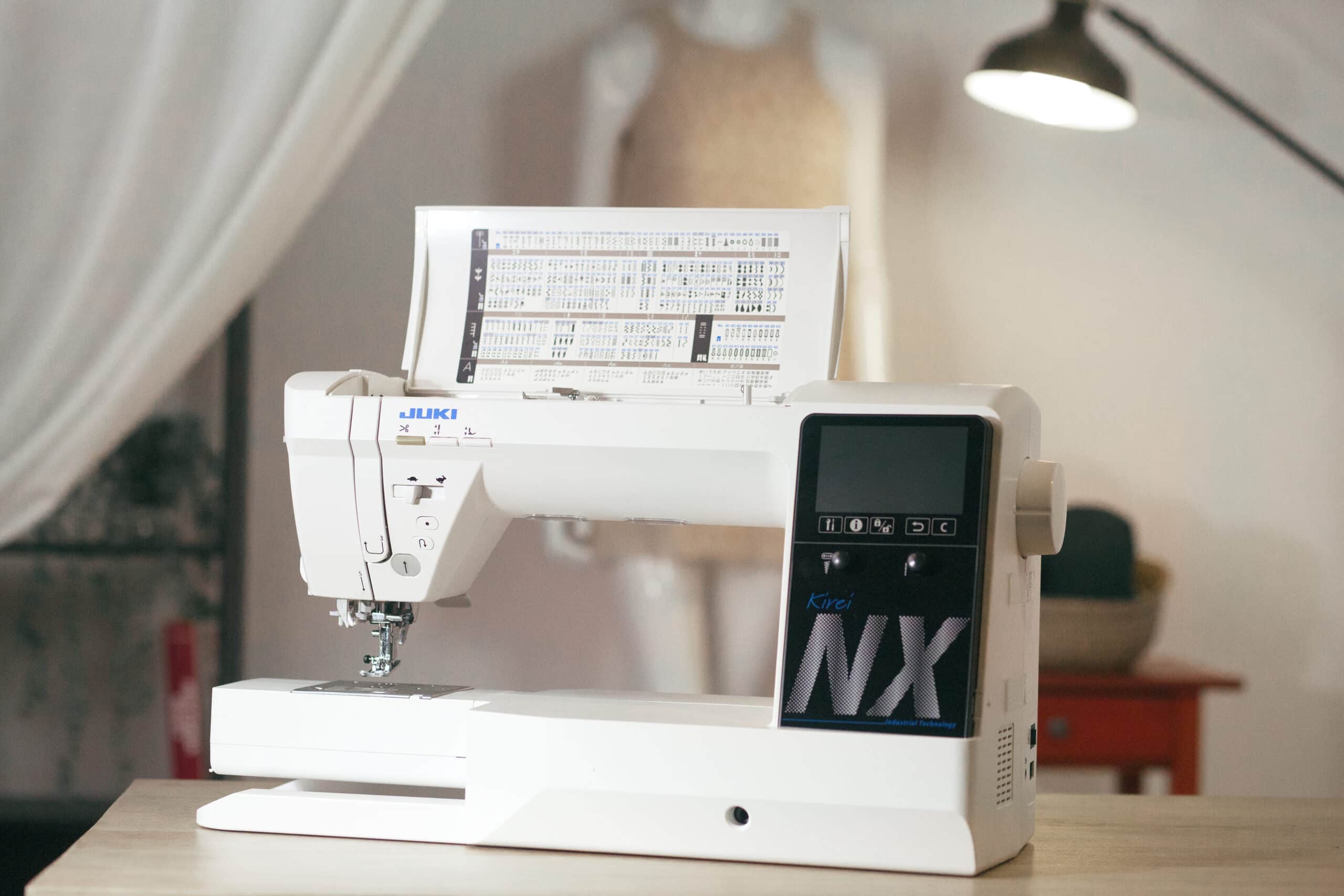

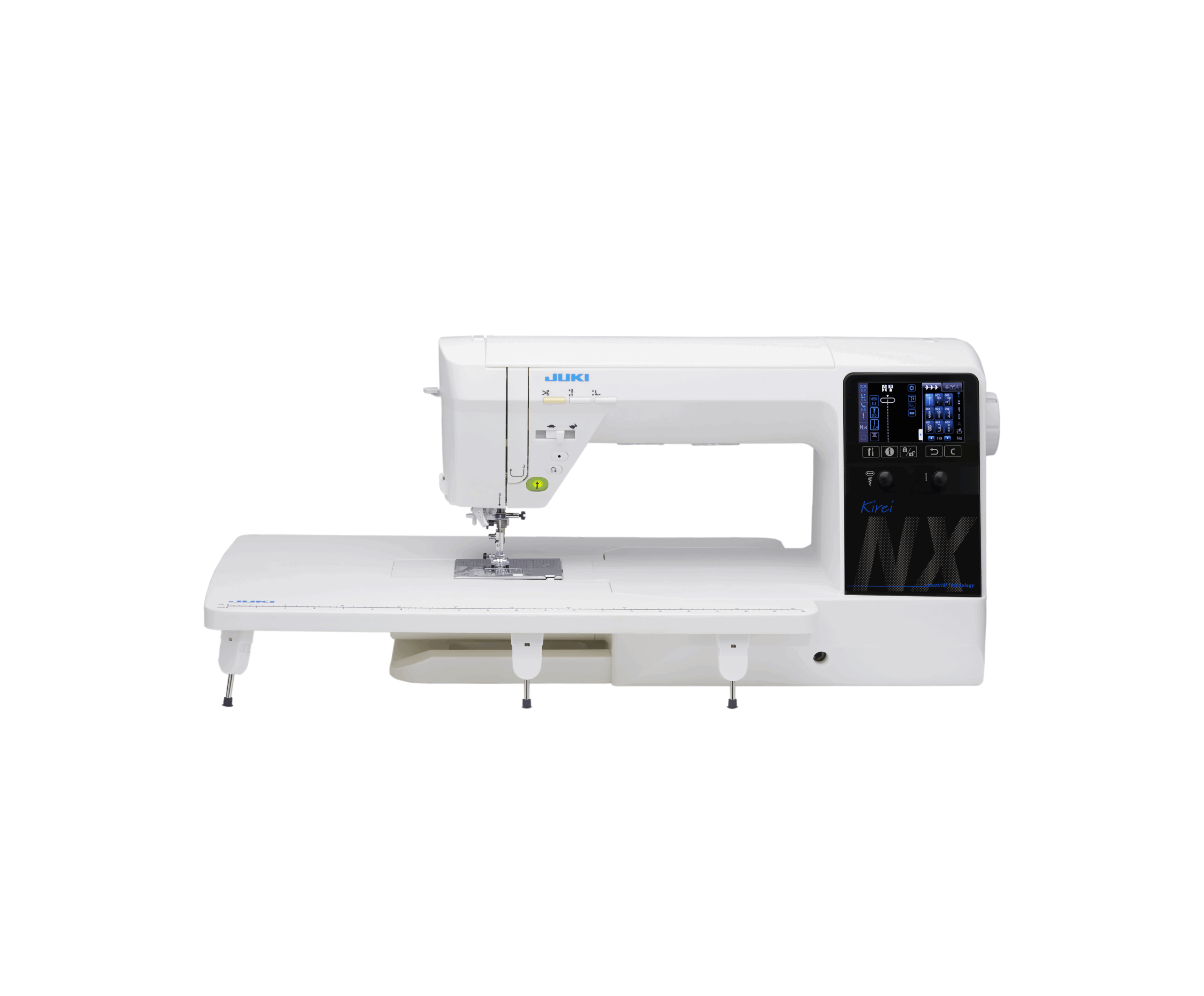

Next generation 12 inch computerised long arm sewing machine.


Why buy from us?


Juki HZL-NX7 is an innovative computerized longarm machine featuring Juki Smart Feed, digital tension and 12 inch throat giving wide sewing area. This multipurpose sewing machines fits perfectly to all sewing levels and interests.

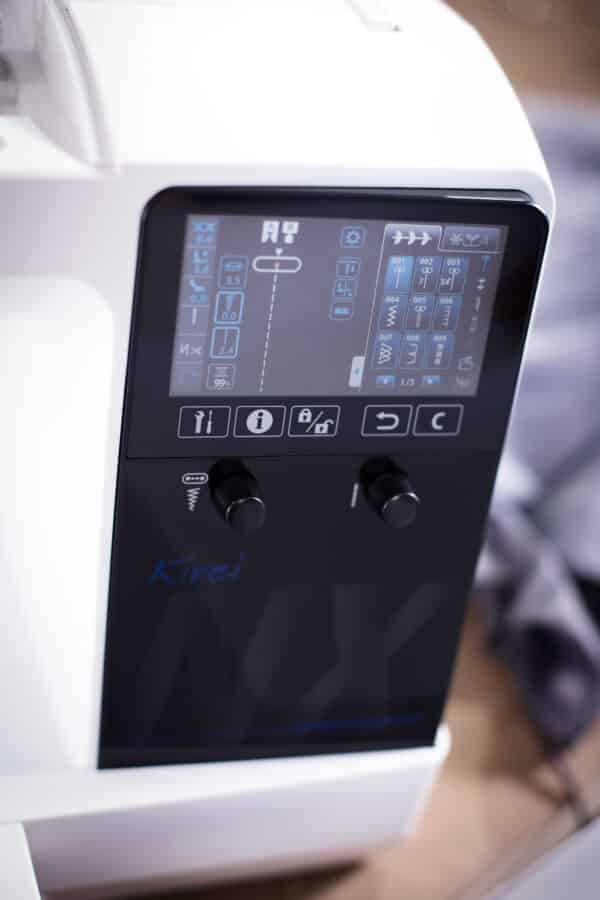

Colour Touch Panel

Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively. Choosing a specific type of pattern just became easier.


Beauty and ease of use of a straight stitch sewing machine

The straight stitch throat plate, feed dogs and presser foot can be replaced in one easy step. Curves and single lap stiching cleanly sewn from the begining of the seam.


Bobbin thread counter

The amount of bobbin thread used is counted based on the stich length and number of stiches sewn. Running out of bobbin thread can be prevented since you will be warned when 20% of thread remains.


JUKI Smart Feed

Engage the JUKI Smart Feed dual feed function to move the top layer of your fabric in sync with the lower layer. Perfect for Points, precision and quilt layers. Adjust the feed amount in 0.2 mm steps for beautiful stitching without worried of shifting layered fabrics.


Thread tension setting optimized for the pattern

The thread tension most suitable for the pattern and stitch length can be set. Sew beautiful seams without shrinkage even when sewing fine or dense stitching.



From touch panel, view instructions for main machine operations.Specify basic settings without even looking at the instruction manual.


Electronic feed dog control mechanism

Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs is lowered. Fabrics can be smoothly removed without damage. In addition to allowing switching to free motion sewing without removing the table.

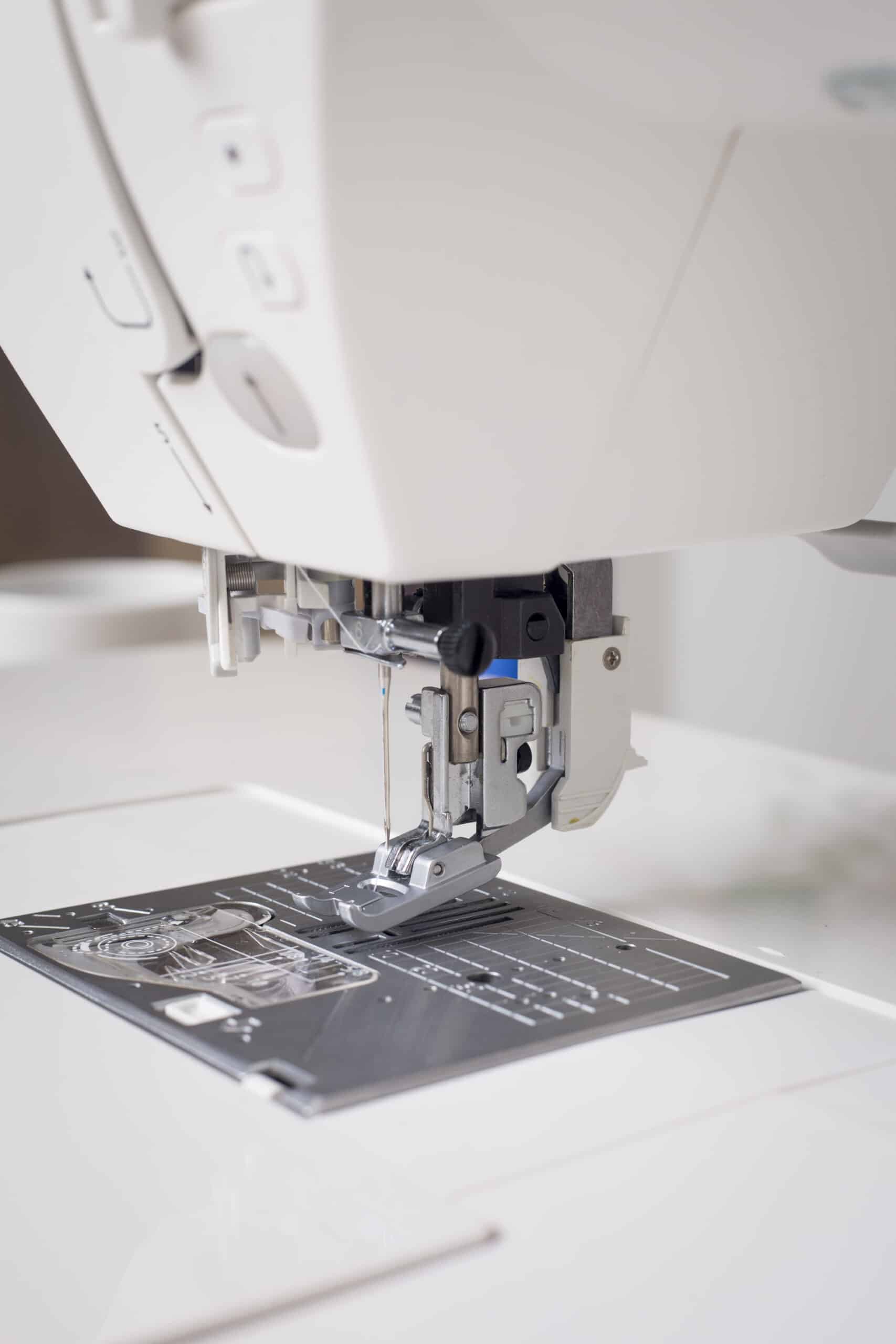

Throat plate with guide

An angle scale is provided in addition to a fine guide scale.Sewing at an accurate position from the fabric edge as well as piecing are both made easier.


Electronic knee lifting control mechanism

Raise the presser foot with a light knee operation.


Foot controller with independent foot switch

With a foot controller that empha- sizes stepping comfort, the needle can be stopped at the precise location of your choice. The foot controller also features excellent responsiveness for sewing a single stitch.


JUKI’s box feed industrial sewing machine technology

The box feed technology, utilised in industrial sewing machines, reliably feeds all types of fabric.It also creates perfectly straight stitching with a uniform pitch. Since the feed dogs remains horizontal during operation, Feed dog stay in con- tact with the fabric longer for reliable feeding without bunched stitching.


Presser Foot Pivot Function

When you stop sewing, the needle stops in the down position and presser foot auto- matically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.


351 built-in stitch patterns

Combining, vertical/horizontal flipping, elongating, repeated sewing … Various editing functions provide infinite possi- bilities for expression!

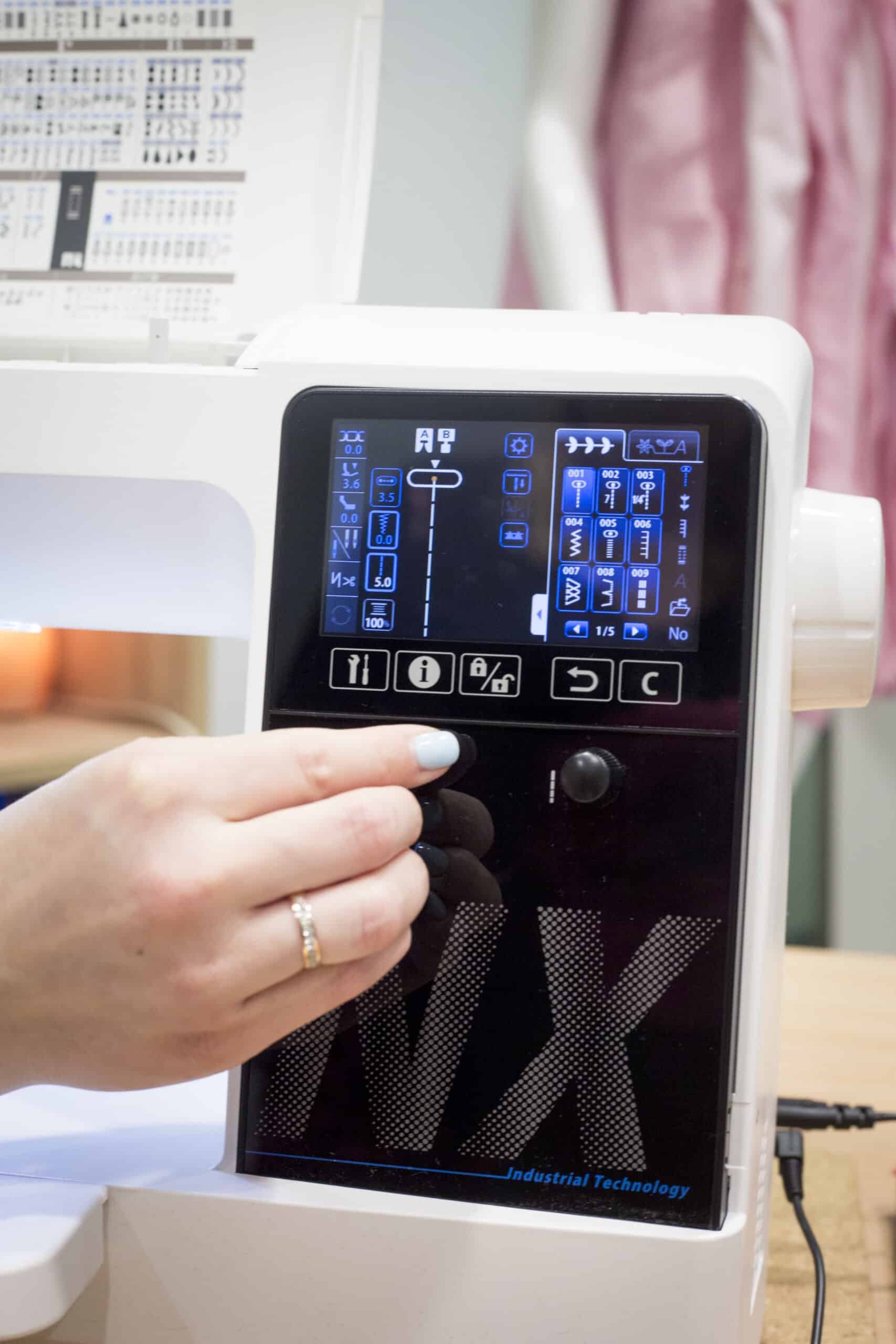

Stitch adjustment/needle position dials

The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.


Free-motion sewing

Lower the feed dogs with the touch of a button. For smooth and effortless free-motion sewing. Transparent quilt presser foot can be used with ruler work (ruler optional).


Micro-lifter Prevents Uneven Seams

You can sew with the presser foot slightly floated.


Large sewing space

The 12-inch (30,48 cm) arm provides unsurpassed workability, even when handling large projects.


Easily sew beautiful buttonholes surpassing the quality of other home sewing machines

The fabric and seam conditions are constantly monitored by JUKI’s original buttonhole sensor system to provide optimum feeding. Buttonholes are beautifully finished in the most suitable sewing order to ensure equal stitching densities of the left and right sides as well as to prevent miss formed keyhole buttonholes by starting with the rounded end.



Juki HZL-NX7 Leaflet Juki HZL-NX7 Instruction Manual Video Tutorials


Additional information


Computer Controlled system
351 Pre-programmed stitch patterns
4 Alphabetic/numeric fonts
Automatic Buttonholes (sensor system) with clamping plate
Start/stop button (Green: Ready to start. Red: Not ready to start. Orange: When the lockstitch button is pressed while the machine is sewing.)
Maximum sewing speed: 1,050 sti/min
Auto thread trimming
Automatic needle threader
Automatic thread tension system
Automatic lock stitch
BOX feed mechanism
Dual feed function
Adjustable presser foot pressure
Drop feed
Bobbin winder with independent motor
Easy bobbin winding
Quick bobbin preparation
Bobbin thread counter
6 LED lights
Straight stitch throat plate, straight stitch feed dogs and straight stitch presser foot
Micro-lifter – Presser foot pressure settings by icons
Free arm
Change in the length/wide of stitches -Dial system/LCD numerical display
Stitch width: Max. 7 mm
Stitch length: Max. 5 mm
37 / 3 Needle positions for stitch patterns
Pattern (right and left) reverse
Twin needle sewing
Elongation Pattern
Adjustable starting / reverse stitch speed
Needle up/down button
Low speed inching sewing
Needle stop position switching
Presser foot pivot function
Save up to 10 patterns
Horizontal presser foot holder button
Lock mode
Operation guide – displayed as illustrations and text

Presser Feet

Standard Presser Foot (A)
Straight Press Foot (S)
Zipper Presser Foot (B)
Overcasting Presser Foot (C)
Blind Stitch Presser Foot (D)
Buttonhole Presser Foot (E)
Manual Buttonhole Presser Foot (I)
Open Toe Presser Foot (O)
Patchwork Presser Foot (P)
Quilt Presser Foot (for the ruler) (Q)
7mm Guide Foot (7) or 1/4″ Guide Foot (1/4)


Straight Stitch Throat Plate
Straight Feed Dog
Touch Pen
Auxiliary Box
Bobbin (4)
Needle Set HA X 1 #11 (1), #14 (1), #16 (1), for knit #11 (1)
Quilt Guide
Auxiliary Spool Pin
T-Shape Screwdriver
Cleaning Brush
Spool Caps (Small, Medium, Large)
Foot Controller
Knee-Lifting Lever
Power Cord
Wide Table
Soft Cover with Accessory Storage
Instruction Manual


2 Years Warranty


575 (W) x 310 (H) x 240 (D) mm


32.1 lbs
