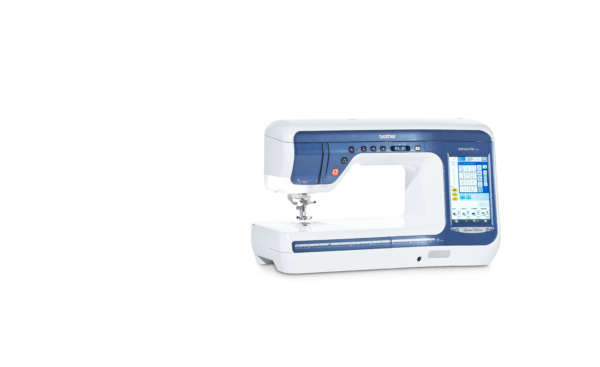

Brother Innov-is V5LE Sewing and Embroidery Machine

Description

For a fast, precise, modern, spacious, and easy-to-use all-in-one machine, the Brother Innov-is V5LE Sewing and Embroidery Machine is the perfect choice. With a long arm and 11 ¼” of space to the right of the needle, it’s designed for adventurous home sewers to bring any creative vision to life.

Choose from 652 incredible stitch designs, including extra-wide decorative stitches up to 40mm. The large 200 x 300mm embroidery area and high speed of 1,050 stitches per minute let you add intricate embroidery to fashion, quilting, and home décor projects. With over 200 built-in designs and 17 embroidery fonts, you’ll have endless options to customise your creations.

Leaflet

Brother Innov-is V5LE Leaflet

Key Features

Large 300 x 200mm embroidery area – ideal for larger projects
Extra-large long arm – 11.25″ (285mm)
Large LCD touch screen – including on-screen editing for embroidery projects
200+ built-in embroidery designs and 17 fonts
ICAPS continuous automatic pressure system – continually detects fabric thickness for superior stitch quality
High-speed sewing and embroidery
Over 500 built-in utility and decorative sewing stitches
Auto presser foot up and down function, perfect for quilters
Automatic electronic needle threader
Lock stitch button
Independent bobbin winder
Auto jump stitch trimmer
USB port – making it easy to import designs
Knee lift
3 year warranty

The V5LE includes UGKV1 as standard specification

Sewing Features

7 Point Feed Dog Yes – SFDS (Square Feed Drive System)
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 5
Buttonholes 14
Circular Sewing Optional
Combine stitches Yes
Continuous Automatic Pressure System (ICAPS) Yes
Direct Dual Feed Optional
Drop feed setting Electronic
Electronic slide speed control yes
Extension Wide Table Optional
Free arm sewing Yes
Free Motion Embroidery Kit Optional
Knee lift Yes
Lock stitch button Yes
Max. Sewing Speed (Stitches per minute) 1050
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 8 sideways)
Multi-function foot controller Optional
Needle Positions 29
Needle Stop Position Control Up/Down Yes
Number of sewing stitches *incl. buttonholes – 652
Pivot function – Yes
Presser Foot Levelling Button – Yes
Repeated single sewing – Yes
SFDS (Square Feed Drive System) – Yes
Snap on Presser Feet System – Yes
Speed control customised for zigzag width – Yes
Stippling Function – Free Hand Quilting
Workspace (cm) – 28.5

Embroidery Features

Built-in Embroidery Frame Patterns – 140 (10 shapes x 14 stitch types)
Number of Hoops (Standard Accessory) – 2
Built In Monogram Styles – 64
Built-In Lettering Styles (Embroidery) – 17
Built-In Patterns – 652
Embroidery Area in mm – 300 x 200
Font Editing Functions/Multiple Lines and Alignment (L-C-R) – L-C-R
Font Size Selection (L-M-S) – Yes
Frames Included – 100 x 100 mm (4 x 4”), 300 x 200 mm (12 x 8”)
Jump Stitch Trim – Yes
LED Pointer – Optional
Max Embroidery Speed (Stitches per Minute) – 1050
Number of Spool Stands – 2
On Screen Video Tutorials – Yes
Pattern – Size, Change Rotation & Mirror – Yes
Realistic Preview of Patterns – Yes
Single Colour Pattern Converter – Yes
Stippling Function – Automatic / Free Hand Quilting

What's in the box

Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Embroidery foot “W”
Free motion open toe quilting foot “O”
Adapter
Screw (small)
Needle set: 75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)
Twin needle 2.0/11 needle
Ball point needle set 75/11 2 needles: Ball point needle for embroidery HAX130EBBR
Bobbin × 10 (One bobbin is in machine.)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Vertical spool pin
Spool cap (small)
Spool cap (medium) × 2 (One spool cap is on machine.)
Spool cap (large)
Spool cap (special)
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Touch pen (stylus)
Knee lifter
USB cable
Alternate bobbin case (no color on the screw)
Bobbin case (gray, for bobbin work)
Cord guide bobbin cover (with single hole)
Bobbin cover (with mark)
Bobbin cover (on machine)
Foot controller
Embroidery frame set (extra large) H 30 cm × W 20 cm (H 12 inches × W 8 inches)
Embroidery frame set (medium) H 10 cm × W 10 cm (H 4 inches × W 4 inches)
Embroidery bobbin thread
Stabilizer material
Grid sheet set
Chalk pencil
Dust cover
Accessory Bag
Operation Manual
Quick Reference Guide

Specifications

Machine Information	Machine Size – Large Product Type – Embroidery, Quilting, Sewing Skill Level – Expert
General Features	Accessory Compartment – Yes Bobbin Type – Horizontal Case – Semi-rigid soft case Machine Type – Electronic Insertion of Bobbin – Quick Set Bobbin Lighting – 6 LEDs Number Of Needles – 1
Connectivity	PC and USB Port
Display	Display Size – 7″ Type of Screen – LCD-Touchscreen 260.000 Colours

Environment	Eco Mode (Auto Power Off/Sleep Mode)

Warranty	Brother 3 year Warranty *Commercial use only 1 year warranty
Threading	Adjustable Thread Tension – Automatic Automatic Thread Cutter – Yes Bobbin Winder – Independent Lower Thread Sensor – Yes Needle Threading System – Automatic Upper Thread Sensor – Yes
Weight and measurements	Machine Dimension (mm) 571x284x332 Weight (kg) 15.4

Features in Depth

Automatic electronic needle threading
Threading the needle is so simple, just the touch of a button.

Central controls
Handy central controls help make sewing simpler.

Electronic touchpads
provide fingertip control.

ICAPS
The Continuous Automatic Pressure System (ICAPS) detects fabric thickness while you sew. It automatically adjusts foot pressure giving you even, super smooth stitch length, even when stitching across differing fabric thicknesses. Perfect for free motion embroidery.

Knee lift
Free up your hands using the knee lift to raise/lower the presser foot. Ideal when you’ve got your hands full with large, bulky projects, like quilts.

Ultra-bright lighting
The V5LE’s ultra-bright LED lighting gives a crisp, bright, natural light, so you can see colours and stitch details easily, no matter what your lighting conditions. Fully adjustable, so you can set it at a level to suit you.

Lock stitch function
Use the lock stitch key to automatically tie off stitches at the beginning or the end of the stitch.

Square Feed Drive System (SFDS)
Super-smooth feeding for superior stitch quality, including sideways feeding.

Extra-large sewing space
Sew even larger projects with the flexible, extra-large sewing space, ideal for quilting projects.

Quick set bobbin
Just drop in a full bobbin and you’re ready to sew!

Large embroidery area 200 x 300mm (7.8 x 11.8”)
Create large embroidery designs with no need to re-hoop.

USB ports
Connect a USB device such as a memory stick or a card reader/writer.

Auto presser foot up/down function
Set the presser foot to automatically go down when you start sewing, and up when finished. Great when you need both hands free on large projects like quilts!

Extra-large colour touch screen
Simply touch the 7”/17.8cm wide-angle screen to:
• Edit on-screen embroidery
• Enhanced text editing
• Customise your settings
• Change to any one of the 13 built-in languages
• View on-screen video tutorials and help guides.
