Brother 4234D Overlocker


  • In Stock for Free Delivery 2-3 Working Days
  • Delivered Direct from Brother UK
  • On Display In Our Showroom


Why buy from us?



The award-winning Brother 4234D overlocker offers professionally hemmed seams and decorative finishes at a great price point. The 4234D lets you sew all of the following stitches: 4 thread overlock, 3 thread overlock narrow, 3 thread overlock wide, flat lock 2 thread, flat lock 3 thread, pin tuck, blind hem, rolled hem and narrow hem.

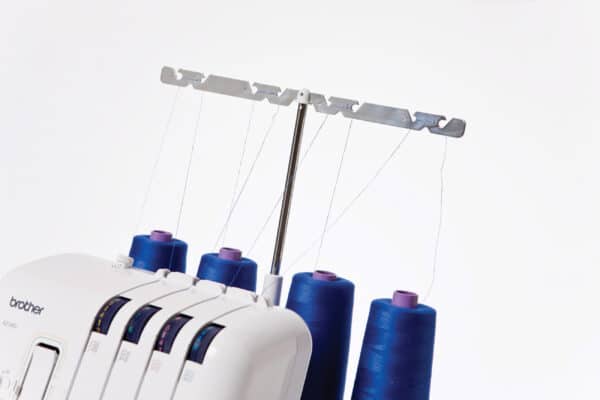

It features a needle threader,  easy to-follow thread guide, and F.A.S.T. lower looper threading system, while  the free-arm/flatbed convertible sewing surface gives you plenty of control and helps ensure you produce excellent results every time

The Brother 4234D hems seams perfectly and creates amazing decorative effects. With this 2, 3 or 4 thread overlocker you have great control, can save valuable time, and always get great results. Achieving perfect overlock stitches on all types and weights of fabric is incredibly straightforward with the 4234D – so it’s little wonder this machine was the winner of the Gold Award at the iF Product Design Awards 2012.



Key Features
  • 2, 3 or 4 thread, cut and sew overlock stitches
  • Needle threader
  • F.A.S.T. (Fast and Simple Threading) lower looper threading system
  • Differential feed for perfect seaming on virtually any fabric type
  • Stitch length and stitch width adjustment
  • Extra bright LED light
  • Free arm flatbed
  • Presser foot pressure adjustment



Brother Support Centre App Brother 4234D Overlocker Leaflet


Additional information

Machine Information

Machine Size – Compact and Lightweight
Product Type – Overlock
Skill Level – Expert, Intermediate


Accessories Compartment – Yes
Foot Controller – Yes
Operational Manual – Yes
Specialty Feed Included – Blind Stitch Foot, Standard Foot
Thread Number – 2/3/4 Thread
Trim Trap Included
Wide Table – Optional

General Features

Change for Rolled Hem – Stitch Finger Removing
Differential Feed – Yes
Free Arm Sewing – Yes
Hardware Type – Mechanical
Knife Drive Type – Lower Drive
Lighting – LED
Lower Looper Threading Method – Retractable Type
Needle Threader – Yes
Pressure Foot Pressure – Yes
Stitch Length (Overlook Stitch) – 2.0 – 4.0mm
Stitch Length (Narrow/Rolled Hemming) – 1.0 – 2.0mm Narrow Hem, 5.0 – 0.7mm Rolled Hem
Stitch Type – 1 Needle 3 Threads Overlook Stitch, 2 Needle 4 Threads Overlock Stitch
Stitch Width – 5.0 – 7.0mm from Left Needle
Thread Tension – Upper Dial Type
Threading Type – Fast and Simple, Lower Looper Threading System


3 Thread Overlock Narrow 2.8mm
3 Thread Overlock Wide 5mm
4 Thread Overlook
Blind Hem
Flat Lock 2 Thread
Flat Lock 3 Thread
Narrow Hem
Pin Tuck
Rolled Hem

What's in the box

Soft Cover
Accessory Bag
Thread Net x4
Thread Spool Cap x4
Cleaning Brush
Hexagonal Driver
Needle Set
Foot Control
Thread Change Assembly
Trim Trap
Stitch Finger “W”
Blind Stitch Foot
