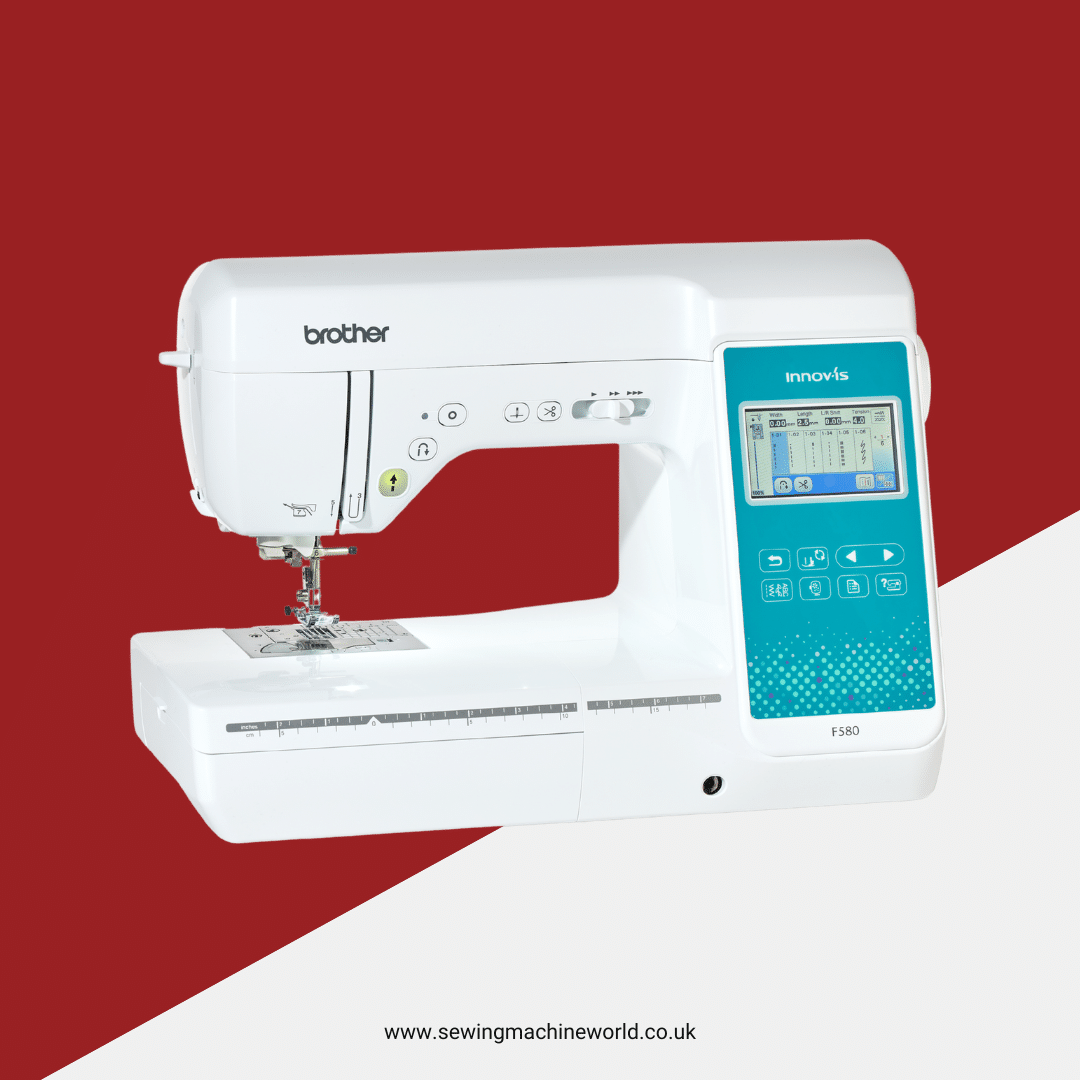

Brother Innov-is F580 Sewing and Embroidery Machine

£1,699.00

  • In Stock for Free Delivery 2-3 Working Days
  • Delivered Direct from Brother UK



Free Madeira Starter pack worth £100. Offer Ends 30th June



Why buy from us?



Description

Designed for designers – the new Brother Innov-is F580 combination sewing, quilting and embroidery machine. Easy-to-use, it boasts a colour LCD touchscreen and is, of course, packed full of eye-catching embroidery designs and Brother’s trademark sewing innovations.

See your style come alive with 241 utility and decorative stitches, including 10 one-step buttonholes. There are 193 built-in embroidery patterns, of which 55 are brand new to the F-series!

Words come easily when you have 13 embroidery and 5 lettering fonts at your fingertips. And even easier when you combine them with the on-screen editing function. Use the colour LCD touchscreen to flip, rotate, change the colour and repeat designs and text.

Expand your portfolio even further with My Custom StitchTM. Design your own decorative stitches directly into your machine and save them for future use.

Professional finishes come as standard with Brother’s innovative Square Feed Drive System (SFDS), giving you superior quality, strong stitching on any fabric. With four-way side feeding decorative stitches are precise and crisp. With top auto thread tension you won’t need to worry about the durability or look of your stitches.

Adjustable foot pressure helps you sew pucker-free seams on even the most stretchy of fabrics. Now there’s no need to avoid ‘difficult’ materials. And the included walking foot means you’ll tackle multi-layer makes with ease.

Whether you’ve been sewing for a while, or are just starting out, the advanced needle threader, drop-in bobbin, slide speed controller and easy to thread system make the Brother Innov-is F580 so simple to use.

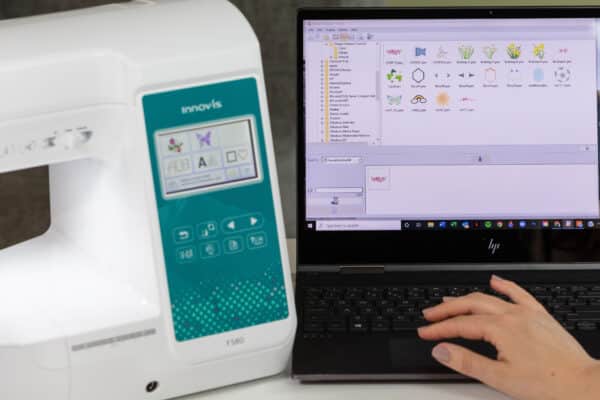

Nothing can limit your design potential. With wireless LAN capability you can easily transfer new embroidery data to your machine and connect to Artspira, our new creative hub!











LCD screen 3.7‘‘

All sewing information displayed on a clear, backlit screen. The Brother Innov-is F580 is equipped with a coloured touchscreen display.



Advanced needle threading system

Effortlessly thread the needle by simply lowering the lever.



Bobbin winding system

Fast and simple threading make winding bobbins quick and easy.



Drop-in bobbin

Just drop-in a bobbin and you’re ready to sew.



Wireless connectivity

Add patterns, transfer data, receive update notifications and connect to the Artsipra creative hub.

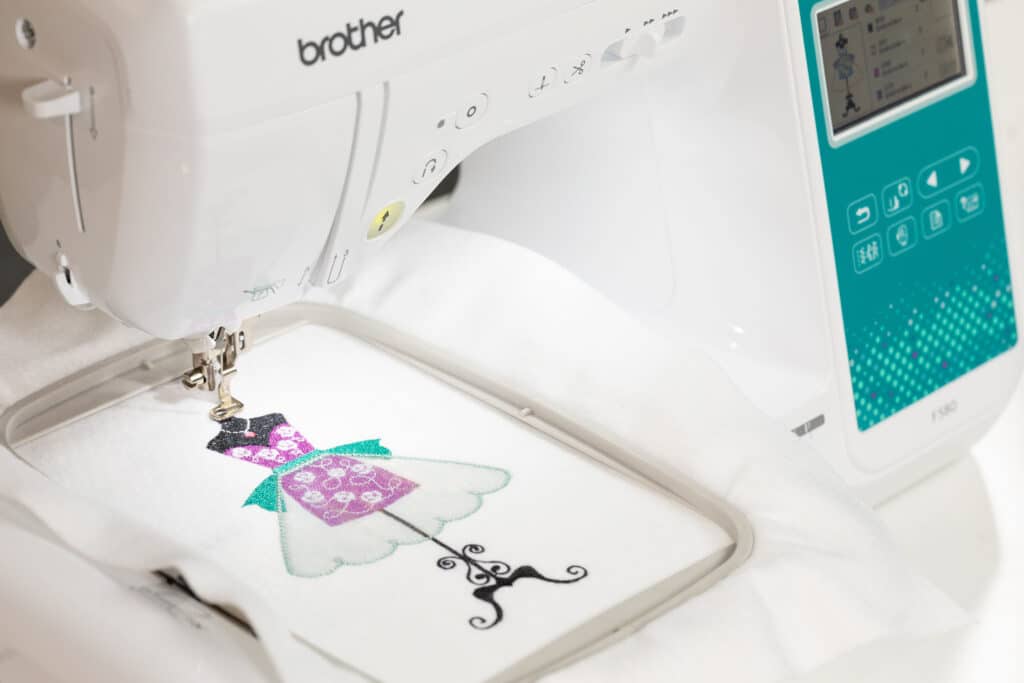

Large embroidery area (180 x 130 mm)

The embroidery machines have a large embroidery area so you can express your creative ideas and make even bigger and more intricate designs.



193 built-in embroidery designs

Choose from a wide variety of florals, animals, geometrics, seasonal designs and much more. With our built-in designs, you can start embroidering right away.



13 built-in font styles

Easily personalise your sewing and embroidery projects by choosing from 13 built-in font styles, available in 3 sizes.



Artspira

Unlock the artist within. Draw your own patterns or download Brother exclusives. *Artspira to launch late 2022



Colour sorting

Fewer thread changes = more time making.



Jump stitch trimmer

Put your snips away! Jump stitches are automatically trimmed for you.



Patterned frame shapes

Put the finishing touch to your embroidery with an elegant frame. Choose from 10 frame shapes and 14 stitch types for an overall total of 140 different patterns available. Combine with lettering to create unique and stylish monograms.



Editing embroidery patterns

Easily adjust the size, rotation or mirror embroidery patterns with the touch of a button.



Combine embroidery patterns

This function also enables embroidery patterns to be combined or lettering to be added to a design.



Text editing functions

Add multiple lines of text and align it to the left, centre or right. Text rotation and font selection are also available from one single editing panel.



USB port

Connect a USB device such as a USB flash drive or a card reader/writer and load your embroidery design directly to the machine.



Optional magnet frame 180 x 100 mm

Make hooping a cinch and protect precious fabrics (additional purchase required). Hoop fabrics up to 2mm thick.



241 built-in stitches, including 10 buttonhole styles

Choose from numerous stitches built-in the machine, giving you unlimited creativity. Also includes 10 one-step buttonholes.



Lettering styles

Includes 5 lettering styles.



Combine stitches

Combine up to 70 stitch patterns and save them to memory.



Stitch reference guide

Choose the required stitch from this useful chart inside the top cover.



My Custom StitchTM

Design your own stitch patterns or edit and change the built-in template designs and save for future use.



Multi-directional sewing

Brother Innov-is F580 offers sewing in four directions.



Automatic thread cutter

Automatically cut upper and lower threads.



Lockstitch button

At the touch of a button, tie-off stitches can be easily sewn at the beginning and end of the stitch.



Slide speed control

Adjust the sewing speed from slow to fast. This can also be used to adjust the stitch width while sewing.



SFDS: Square Feed Drive System

Square Feed Drive System gives you smooth, even feeding action for superior stitch quality on any weight of fabric.



Adjustable presser foot pressure

Helps you stitch pucker-free seams on even the most stretchy of fabrics.



Adjustable thread tension

Achieve the best possible stitch quality across different fabrics by adjusting the tension of the upper thread. Brother Innov-is F580 provides automatic control.



Thread sensor

The Brother Innov-is F580 is equipped with upper and lower thread sensors that warn when thread is broken or has run out.



Free arm

Ideal for sewing tubular items like sleeves, trouser legs, etc.



Knee lift

Free up your hands by using your knee to lift the presser foot.



Walking foot included

The included walking foot and quilting guide means you’ll tackle multi-layer quilts with ease, no matter what combinations of materials you use to make them.






Brother Innov-is F580 Leaflet Brother Support Centre App Optional Accessories Brother Artspira App

Additional information

Presser Feet

Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Blind stitch foot “R”
Button fitting foot “M”
Buttonhole foot “A”
Embroidery foot “Q”
Free motion open toe quilting foot “O”
Walking foot
1/4" piecing foot
Quilting guide
Side cutter “S”
Open toe foot
Non stick foot
Stitch guide foot “P”
Adjustable zipper/piping foot

Accessories

Needle set
Twin needle
Bobbin x 4 (One bobbin is on machine)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (large)
Screwdriver (small)
Disc-shaped screwdriver
Horizontal spool pin
Spool cap (large)
Spool cap (medium) x 2 (One spool cap is on machine.)
Spool cap (small)
Thread spool insert (mini king thread spool)
Spool net
Knee lifter
Standard bobbin case (on machine)
Alternate bobbin case (no color on the screw)
Foot controller
Embroidery frame set (extra large (multi-position)) 30 cm (H) × 13 cm (W) (12 inches (H) × 5 inches (W))
Embroidery frame set (large) 18 cm (H) × 13 cm (W) (7 inches (H) × 5 inches (W))
Embroidery bobbin thread (60 weight, white)
Accessory bag
Hard case
Grid sheet set
Operation Manual
Quick Reference Guide
Embroidery Design Guide

Warranty

Brother 3 year Warranty *Commercial use only 1 year warranty

Weight and measurements

Machine Dimension (mm) – 446 x 248 x 300
Weight (kg) – 9.3kg

Key Features

180 x 130 mm embroidery area
193 built-in embroidery designs – 55 never seen before!
13 embroidery fonts – 2 brand new ones!
Jump stitch trimming
Colour sorting
Advanced needle threader
Wireless LAN enabled
Connect to the Artspira app
241 sewing stitches, including 10 buttonholes, plus 5 fonts
7.4” (190 mm) workspace
Sideways feeding sewing and SFDS
Automatic upper thread tension
Auto thread cutter
My Custom StitchTM
Hard case

Machine Information

Machine Size – Medium
Product Type – Embroidery, Quilting, Sewing
Skill Level – Beginner, Intermediate

General Features

Accessory Compartment – Yes
Bobbin Type – Horizontal
Case – Hard Case
Machine Type – Electronic
Insertion of Bobbin – Quick Set Bobbin
Number Of Needles – 1
Lighting – 2 LEDs

Connectivity

Design Database Transfer app for Windows PC – Yes
My Design Snap App – Yes
USB Port – USB Port
Wi-LAN Function – Yes

Display

Type of Screen – LCD-Touchscreen Colour
Display Size – 3,7"

Embroidery Features

Font Size Selection (L-M-S) Yes
Max Embroidery Speed (Stitches per Minute) 650
Number of Hoops (Standard Accessory) – 2
Number of Spool Stands – 1
Pattern – Size, Change Rotation & Mirror – Yes
Realistic Preview of Patterns – Yes
Built-in Embroidery Frame Patterns – 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) – 13
Built-In Patterns – 193
Embroidery Area in mm – 180 x 130
Font Editing Functions/Multiple Lines and Alignment (L-C-R) – C
Jump Stitch Trim – Yes
Thread Colour Sorting – Yes

Environment

Voltage – 220 – 240V

Sewing Features

7 Point Feed Dog – Yes – SFDS (Square Feed Drive System)
Automatic reverse / reinforcement stitch – Yes
Bobbin Work – Optional
Built-In Lettering Styles – 5
Buttonholes – 10
Circular Sewing – Optional
Combine stitches – Yes
Drop feed setting – Manual
Electronic slide speed control – yes
Extension Wide Table – Optional
Knee lift – Yes
Longer Feed Dog – Yes
Longer J-Foot – Yes
Max. Sewing Speed (Stitches per minute) – 850
Mechanical Dual Feed – Yes
Mirror imaging – Yes
Multi-Directional Sewing – Yes (up to 4 sideways)
Multi-function foot controller – Optional
My Custom Stitch – Yes
Needle Positions – 15
Needle Stop Position Control Up/Down – Yes
Presser Foot Levelling Button – Yes
Repeated single sewing – Yes
Snap on Presser Feet System – Yes
Speed control customised for zigzag width – Yes
Workspace (cm) – 19
Adjustable presser foot – Yes
Free arm sewing – Yes
Lock stitch button – Yes
Number of sewing stitches *incl. buttonholes – 241
SFDS (Square Feed Drive System) – Yes
Stitch Length (mm) – 5
Stitch Width (mm) – 7

Threading

Automatic Thread Cutter – Yes
Bobbin Winder – Yes
Lower Thread Sensor – Yes
Needle Threading System – Extra Advanced
Upper Thread Sensor – Yes
Adjustable Thread Tension – Automatic
